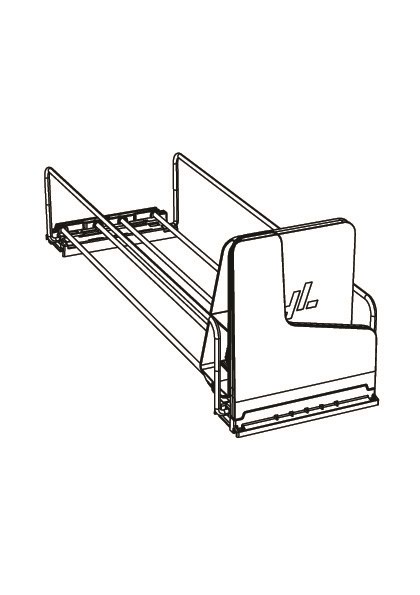

Multivo™ Max - Large Pusher Tray With Wire Dividers
Part of the HL Display Multivo™ Max system, available with straight pusher plate. This large tray is ideal for chilled and frozen categories.
It is easy to install and uses the same front fixing rail as in our Multivo™ range.
Width - extendable 210mm to 355mm max.
Length - 395mm
Material - Metal
Colour - black
For each shelf simply select the below
1 x front rail
1 x two divider tray per product for PRODUCT facing.
- Product name: MU-MAX2-2W-P100
- Product position: Shelves
- Standard color: Black
- Standard width (mm): 110-250; 210-355
- Standard depth (mm): 295; 395; 440; 465; 495; 565; 595
- Standard front: A6; S8; F14; FDW4
- Standard pusher: P100
- Standard spring: 8N; 12N; 16N; 20N
- Standard material: Wire
Sustainable choice
Articles
| Item number | Colour | Width (mm) | Depth (mm) | Front | PusherHouse | Pusher facing | Spring | Additional Specification |
|---|---|---|---|---|---|---|---|---|
| 584949 | Black | 110-250 | 295 | A6 | P100 | PA | 2x8N | |
| 584955 | Black | 110-250 | 295 | F14 | P100 | PS | 2x8N | |
| 584952 | Black | 110-250 | 295 | S8 | P100 | PS | 2x8N | |
| 584950 | Black | 110-250 | 295 | A6 | P100 | PA | 2x12N | |
| 584956 | Black | 110-250 | 295 | F14 | P100 | PS | 2x12N | |
| 584953 | Black | 110-250 | 295 | S8 | P100 | PS | 2x12N | |
| 584951 | Black | 110-250 | 295 | A6 | P100 | PA | 2x16N | |
| 584957 | Black | 110-250 | 295 | F14 | P100 | PS | 2x16N | |
| 584954 | Black | 110-250 | 295 | S8 | P100 | PS | 2x16N | |
| 591050 | Black | 110-250 | 395 | S8 | P100 | PS | 12N | |
| 571166 | Black | 110-250 | 395 | A6 | P100 | PA | 2x8N | |
| 571162 | Black | 110-250 | 395 | F14 | P100 | PS | 2x8N | |
| 571158 | Black | 110-250 | 395 | S8 | P100 | PS | 2x8N | |
| 571190 | Black | 110-250 | 395 | A6 | P100 | PA | 2x12N | |
| 571186 | Black | 110-250 | 395 | F14 | P100 | PS | 2x12N | |
| 571182 | Black | 110-250 | 395 | S8 | P100 | PS | 2x12N | |
| 571286 | Black | 110-250 | 395 | A6 | P100 | PA | 2x16N | |
| 571234 | Black | 110-250 | 395 | F14 | P100 | PS | 2x16N | |
| 571230 | Black | 110-250 | 395 | S8 | P100 | PS | 2x16N | |
| 571202 | Black | 110-250 | 440 | A6 | P100 | PA | 2x12N | |
| 571548 | Black | 110-250 | 440 | F14 | P100 | PS | 2x12N | |
| 571542 | Black | 110-250 | 440 | S8 | P100 | PS | 2x12N | |
| 571298 | Black | 110-250 | 440 | A6 | P100 | PA | 2x16N | |
| 571246 | Black | 110-250 | 440 | F14 | P100 | PS | 2x16N | |
| 571242 | Black | 110-250 | 440 | S8 | P100 | PS | 2x16N | |
| 585015 | Black | 110-250 | 465 | A6 | P100 | PA | 2x8N | |
| 585011 | Black | 110-250 | 465 | F14 | P100 | PS | 2x8N | |
| 585010 | Black | 110-250 | 465 | S8 | P100 | PS | 2x8N | |
| 585016 | Black | 110-250 | 465 | A6 | P100 | PA | 2x12N | |
| 585012 | Black | 110-250 | 465 | F14 | P100 | PS | 2x12N | |
| 585009 | Black | 110-250 | 465 | S8 | P100 | PS | 2x12N | |
| 585017 | Black | 110-250 | 465 | A6 | P100 | PA | 2x16N | |
| 585013 | Black | 110-250 | 465 | F14 | P100 | PS | 2x16N | |
| 572482 | Black | 110-250 | 465 | S8 | P100 | PS | 2x16N | |
| 585018 | Black | 110-250 | 465 | A6 | P100 | PA | 2x20N | |
| 585014 | Black | 110-250 | 465 | F14 | P100 | PS | 2x20N | |
| 585008 | Black | 110-250 | 465 | S8 | P100 | PS | 2x20N | |
| 571619 | Black | 110-250 | 495 | A6 | P100 | PA | 2x8N | |
| 571615 | Black | 110-250 | 495 | F14 | P100 | PS | 2x8N | |
| 571611 | Black | 110-250 | 495 | S8 | P100 | PS | 2x8N | |
| 571214 | Black | 110-250 | 495 | A6 | P100 | PA | 2x12N | |
| 571601 | Black | 110-250 | 495 | F14 | P100 | PS | 2x12N | |
| 571597 | Black | 110-250 | 495 | S8 | P100 | PS | 2x12N | |
| 571310 | Black | 110-250 | 495 | A6 | P100 | PA | 2x16N | |
| 571258 | Black | 110-250 | 495 | F14 | P100 | PS | 2x16N | |
| 571254 | Black | 110-250 | 495 | S8 | P100 | PS | 2x16N | |
| 571358 | Black | 110-250 | 495 | A6 | P100 | PA | 2x20N | |
| 571354 | Black | 110-250 | 495 | F14 | P100 | PS | 2x20N | |
| 571350 | Black | 110-250 | 495 | S8 | P100 | PS | 2x20N | |
| 571322 | Black | 110-250 | 565 | A6 | P100 | PA | 2x16N | |
| 571270 | Black | 110-250 | 565 | F14 | P100 | PS | 2x16N | |
| 571266 | Black | 110-250 | 565 | S8 | P100 | PS | 2x16N | |
| 571334 | Black | 110-250 | 595 | A6 | P100 | PA | 2x16N | |
| 571282 | Black | 110-250 | 595 | F14 | P100 | PS | 2x16N | |
| 571278 | Black | 110-250 | 595 | S8 | P100 | PS | 2x16N | |
| 192491 | Black | 210-355 | 295 | FDW4 | P100 | PS | 2x6L | |
| 193719 | Black | 210-355 | 395 | FDW4 | P100 | PS | 2x6L | |
| 571098 | Black | 210-355 | 395 | F14 | P100 | PS | 2x8N | |
| 571096 | Black | 210-355 | 395 | S8 | P100 | PS | 2x8N | |
| 572275 | Black | 210-355 | 395 | F14 | P100 | PS | 2x12N | |
| 572273 | Black | 210-355 | 395 | S8 | P100 | PS | 2x12N | |
| 571140 | Black | 210-355 | 395 | F14 | P100 | PS | 2x16N | |
| 571138 | Black | 210-355 | 395 | S8 | P100 | PS | 2x16N | Extra Strong Spring; Straight back plate |
| 193720 | Black | 210-355 | 495 | FDW4 | P100 | PS | 2x6L | |
| 571102 | Black | 210-355 | 495 | F14 | P100 | PS | 2x8N | |
| 571100 | Black | 210-355 | 495 | S8 | P100 | PS | 2x8N | |
| 572279 | Black | 210-355 | 495 | F14 | P100 | PS | 2x12N | |
| 572277 | Black | 210-355 | 495 | S8 | P100 | PS | 2x12N | |
| 571144 | Black | 210-355 | 495 | F14 | P100 | PS | 2x16N | |
| 571142 | Black | 210-355 | 495 | S8 | P100 | PS | 2x16N | |
| 571122 | Black | 210-355 | 495 | F14 | P100 | PS | 2x20N | |
| 571120 | Black | 210-355 | 495 | S8 | P100 | PS | 2x20N | |
| 571148 | Black | 210-355 | 565 | F14 | P100 | PS | 2x16N | |
| 571146 | Black | 210-355 | 565 | S8 | P100 | PS | 2x16N | |
| 571126 | Black | 210-355 | 565 | F14 | P100 | PS | 2x20N | |
| 571124 | Black | 210-355 | 565 | S8 | P100 | PS | 2x20N | |
| 585294 | Black | 210-355 | 595 | F14 | P100 | PS | 2x16N | |
| 585291 | Black | 210-355 | 595 | S8 | P100 | PS | 2x16N | |
| 585293 | Black | 210-355 | 595 | F14 | P100 | PS | 2x20N | |
| 585292 | Black | 210-355 | 595 | S8 | P100 | PS | 2x20N |
×
![]()
