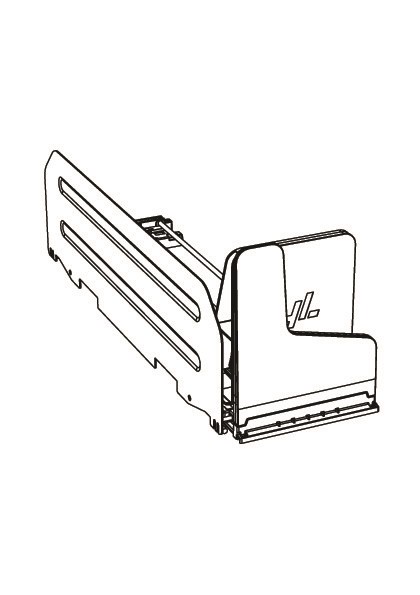

Multivo™ Max - Large Pusher Tray With Single Divider
Part of the HL Display Multivo™ Max system, available with straight or angled pusher plate. This durable, metal tray is built to last and ideal for: Pre Pack Meats such as steaks, Pre Pack Cooked Meats, Pre Pack Ready Meals.
It is easy to install and uses the same front fixing rail as the smaller Multivo™ range.
- Width - extendable 110mm to 250mm max.
- Length - 395mm
- Material - Metal
For each shelf simply select the below

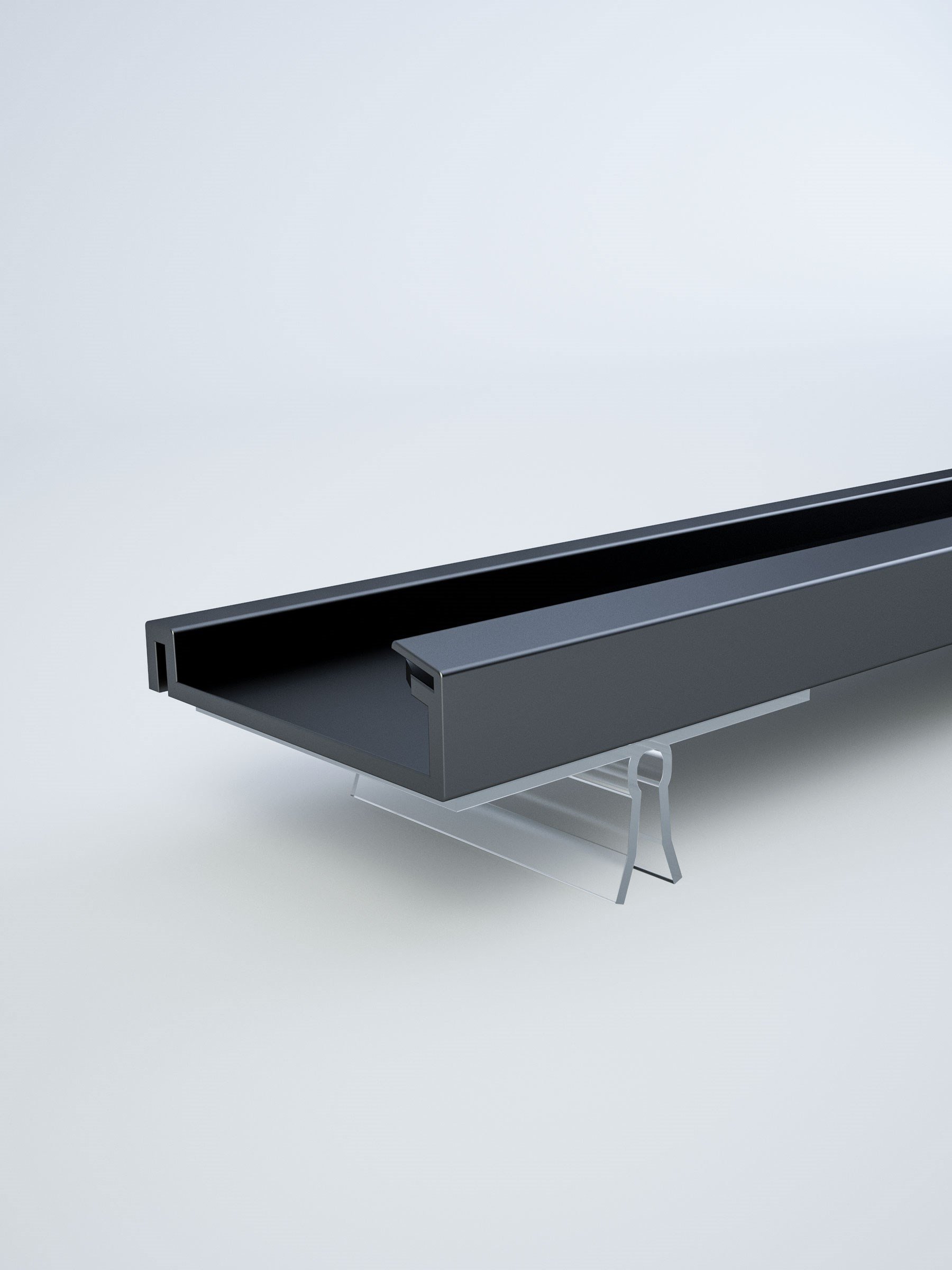

1 x front rail
1 x two divider tray per shelf
1 x single divider tray PER PRODUCT.
Need help? Please get in touch with our team.
HL Display's most advanced shelf management system to date. Multivo™ and Multivo Max™ allow for fast and easy installation and excellent on shelf presentation making sure your store always looks it's best.
- Product name: MU-MAX2-1M-P100
- Product position: Shelves
- Standard color: Black
- Standard width (mm): 110-250
- Standard depth (mm): 295; 395; 440; 495; 565; 595
- Standard front: A6; S8; F14; FDW4
- Standard pusher: P100
- Standard spring: 8N; 12N; 16N; 20N
- Standard material: Metal
Articles
| Item number | Colour | Width (mm) | Depth (mm) | Front | PusherHouse | Pusher facing | Spring | Additional Specification |
|---|---|---|---|---|---|---|---|---|
| 584946 | Black | 110-250 | 295 | F14 | P100 | PS | 2x8N | |
| 584943 | Black | 110-250 | 295 | S8 | P100 | PS | 2x8N | |
| 584947 | Black | 110-250 | 295 | F14 | P100 | PS | 2x12N | |
| 584944 | Black | 110-250 | 295 | S8 | P100 | PS | 2x12N | |
| 584948 | Black | 110-250 | 295 | F14 | P100 | PS | 2x16N | |
| 584945 | Black | 110-250 | 295 | S8 | P100 | PS | 2x16N | |
| 588540 | Black | 110-250 | 395 | A6 | P100 | PA | 2x8N | Strong spring, Angled back plate |
| 571161 | Black | 110-250 | 395 | F14 | P100 | PS | 2x8N | |
| 571157 | Black | 110-250 | 395 | S8 | P100 | PS | 2x8N | Strong spring, Straight back plate |
| 571189 | Black | 110-250 | 395 | A6 | P100 | PA | 2x12N | |
| 571185 | Black | 110-250 | 395 | F14 | P100 | PS | 2x12N | |
| 571181 | Black | 110-250 | 395 | S8 | P100 | PS | 2x12N | |
| 584235 | Black | 110-250 | 395 | A6 | P100 | PA | 2x16N | |
| 571233 | Black | 110-250 | 395 | F14 | P100 | PS | 2x16N | |
| 571229 | Black | 110-250 | 395 | S8 | P100 | PS | 2x16N | Extra strong spring, Straight back plate |
| 571547 | Black | 110-250 | 440 | F14 | P100 | PS | 2x12N | |
| 571541 | Black | 110-250 | 440 | S8 | P100 | PS | 2x12N | |
| 584232 | Black | 110-250 | 440 | A6 | P100 | PA | 2x16N | |
| 571245 | Black | 110-250 | 440 | F14 | P100 | PS | 2x16N | |
| 571241 | Black | 110-250 | 440 | S8 | P100 | PS | 2x16N | |
| 571614 | Black | 110-250 | 495 | F14 | P100 | PS | 2x8N | |
| 571610 | Black | 110-250 | 495 | S8 | P100 | PS | 2x8N | |
| 571600 | Black | 110-250 | 495 | F14 | P100 | PS | 2x12N | |
| 571596 | Black | 110-250 | 495 | S8 | P100 | PS | 2x12N | |
| 571309 | Black | 110-250 | 495 | A6 | P100 | PA | 2x16N | |
| 571257 | Black | 110-250 | 495 | F14 | P100 | PS | 2x16N | |
| 571253 | Black | 110-250 | 495 | S8 | P100 | PS | 2x16N | |
| 584227 | Black | 110-250 | 495 | S8 | P100 | PA | 2x16N | |
| 571353 | Black | 110-250 | 495 | F14 | P100 | PS | 2x20N | |
| 571349 | Black | 110-250 | 495 | S8 | P100 | PS | 2x20N | |
| 571269 | Black | 110-250 | 565 | F14 | P100 | PS | 2x16N | |
| 571265 | Black | 110-250 | 565 | S8 | P100 | PS | 2x16N | |
| 590312 | Black | 110-250 | 595 | A6 | P100 | PA | 16N | |
| 571281 | Black | 110-250 | 595 | F14 | P100 | PS | 2x16N | |
| 571277 | Black | 110-250 | 595 | S8 | P100 | PS | 2x16N |
×
![]()
